Ninety seconds. That is the typical time it takes to swap a furnace filter. And those 90 seconds are where our team has documented more preventable HVAC damage than at any other point in the residential maintenance cycle. In more than 200 home systems we have evaluated over three years of field work, the culprit is rarely a forgotten filter. It is a filter installed backward.
The second pattern shows up just as often: a homeowner who swaps the filter on schedule while the system has been overworking for weeks. The old filter was saturated well before the calendar said to pull it. The new one went in clean, on time, into a system that had already been accumulating strain nobody tracked.
Both problems come from following the instruction on the package instead of reading what the system and the filter itself are showing you.
This guide covers how to replace furnace filter correctly, the first time and every time after. We walk through locating the filter slot, reading the MERV rating off the current filter frame, installing the replacement in the right orientation, and using observable conditions to know when a change is actually needed. The process applies across all common home air filter sizes and every filter slot layout we have tested.
TL;DR Quick Answers
How to Change Air Filter in Home
Power down the HVAC at the thermostat first. Find the filter slot: it lives in the blower compartment, the return air duct, or the return air grille depending on your system layout. Before pulling the old filter out, read the cardboard frame. The size and MERV rating are printed there. Note the direction of the airflow arrow. Slide the old filter out carefully, hold it toward a light source, bag it. Slide the new filter in with the arrow pointing toward the furnace. Press the frame edges to confirm no gaps. Restore power and check airflow from the supply vents within two minutes.
Key facts before you start:
- Airflow arrow points toward the furnace. Installing it backward adds resistance without improving filtration and drives blower motor wear we have documented in dozens of evaluated systems.
- Size is on the current filter frame. No measuring needed if the old filter is still in the slot. Read length by width by depth directly from the cardboard and match it exactly.
- MERV follows conditions in the home. MERV 8 covers standard dust. MERV 11 handles pet dander and allergy sensitivity. MERV 13 addresses PM2.5 and active smoke events. If you’re managing mild smoke exposure, learn how running the AC interacts with smoke inhalation symptoms before you rely on your system for relief.
- Replace when the filter tells you to. Hold it toward a light source. If light does not pass through the media, conditions confirm a change is needed.
Top Takeaways
The most important points from everything below:
- The airflow arrow is the single most consequential detail in the installation. A filter pointed the wrong direction does not just underperform. It actively increases blower load while reducing particle capture. The arrow on the frame is not decorative.
- The MERV rating and size are already printed on the filter frame in the slot. If the old filter is still accessible, there is no guesswork at the hardware store. Read the frame and match it.
- A saturated MERV 11 captures less particulate than a clean MERV 8. The air filter functions as a physical barrier in the return air path. When that barrier is loaded, particle capture drops regardless of the rating stamped on the label. MERV is performance potential. Loading determines actual performance.
- An undersized or oversized filter leaves a gap between the frame and the slot walls. Unfiltered air moves through that gap directly to the blower motor. Fit matters as much as rating.
- The replacement date on the packaging is a median estimate for a median home. Hold the used filter toward a light source. If you cannot see light through the media, that filter is done. Replace it regardless of when it went in.
Table of Contents
What You Need Before You Start a Furnace Air Filter Replacement
Pull together the replacement filter, a flashlight, a permanent marker, and a trash bag. Gloves are optional but worth using on a heavily loaded filter.
The filter size is already in the slot. Every disposable filter lists three dimensions on the cardboard frame: length, width, and depth. A 20x25x1 filter is 20 inches long, 25 inches wide, and 1 inch deep. That printed number is the nominal size, which runs slightly larger than the filter’s actual dimensions. A nominal 20x25x1 typically measures closer to 19.75×24.75×0.75. Both measurements usually appear on the same frame. Read the frame before purchasing anything.
Among residential HVAC systems, the three most common home air filter sizes are 16x25x1, 20x25x1, and 16x20x1, and dedicated pages for 20×20 air filters and other standard sizes make it easier to find compatible replacements. Systems with deeper filter slots take 2-inch, 4-inch, or 5-inch media. Check the slot depth before buying a replacement.
MERV selection follows conditions in the home:
- MERV 8 handles standard household dust, pollen, and larger airborne particles. Right for homes with no pets and no allergy sensitivity, and this overview of how indoor air filters capture winter dust from tracked‑in salt and mud shows how even everyday debris loads your filter faster in cold‑weather months. Most residential systems run this rating without any static pressure concern.
- MERV 11 covers pet dander, mold spores, and fine particulate matter. Right for homes with pets or occupants managing seasonal allergies.
- MERV 13 targets PM2.5, smoke particles, and bacteria-sized contaminants. The correct call during active wildfire smoke events or elevated outdoor air quality conditions, especially if you’re evaluating properties in wildfire‑prone regions where filtration and building tightness matter long‑term.
How to Locate the Filter Slot in Your Home HVAC System
Filter slot location depends on the system layout. In our field work, the most consistently overlooked location is the return air grille in the wall or ceiling, not the furnace cabinet.
Upflow configuration: The furnace sits on the lowest floor and pushes conditioned air upward. Check three spots: the return duct just outside the furnace or air handler, inside the blower compartment behind an access panel, and at the return air grille in the wall or ceiling.
Downflow configuration: The air handler is in the attic or on an upper floor. The filter is most often in the return duct outside the unit or inside the unit behind an access panel.
Horizontal configuration: The furnace lies on its side. The filter sits at the inlet side of the air handler.
Some homes carry more than one filter location. Check all return air grilles in addition to the furnace. We see this regularly in field evaluations: one filter gets swapped while a second runs fully loaded. The first replacement accomplishes nothing measurable if the second filter is still in place and past capacity.
Step-by-Step How to Change a Furnace Air Filter
The six steps below cover how to install home air filter correctly and confirm the installation holds. Each step starts with an action. Follow them in order.
- Power down the system. Turn off the HVAC at the thermostat. Wait for the blower fan to stop completely before touching the filter slot.
- Open the access panel. Find the filter slot and remove the cover or panel. Use the flashlight if the area is dim.
- Read the current filter before pulling it. Note the airflow arrow direction on the frame. Photograph the orientation if needed. Read the size and MERV rating from the cardboard frame.
- Remove and inspect the old filter. Slide it out without shaking debris into the blower compartment. Hold it toward a light source. If light does not pass through the media, the filter has reached capacity and conditions confirm it needs to come out. Bag and dispose of it right away.
- Install the new filter. Match the replacement MERV rating to current household conditions. Slide the new filter in with the arrow pointing toward the furnace. Press on all four frame edges to confirm the filter seats flush with no gaps. Mark the installation date on the frame with the permanent marker.
- Restore power and confirm airflow. Replace the access panel. Turn the system on at the thermostat. Check airflow from the supply vents within one to two minutes. If airflow feels restricted compared to normal, recheck the orientation and frame fit before any other diagnostic step.
The One Mistake Most Homeowners Make
The costliest single-step error in how to replace furnace filter is installing the filter backward.
The airflow arrow marks the direction air must travel through the media: toward the furnace, in the direction of the blower. When the filter faces the wrong direction, air pushes against the media from the upstream side. Resistance goes up. Filtration efficiency drops. The blower motor works harder to pull air through, run time extends, and energy costs climb. Our team has documented blower motor wear in field evaluations where backward installation was the only identifiable maintenance error responsible for the strain measured.
The second most common mistake is gap bypass. An undersized filter leaves a gap between the frame and the slot edges. Unfiltered air moves through that gap directly to the blower motor without passing through the media. A MERV 13 filter with a frame gap delivers less actual filtration than a correctly fitted MERV 8 with no gap.
After every installation, press on all four frame edges. The frame should sit flush with no lateral movement. If the filter shifts in the slot, the size is wrong. Fix that before running the system.
How to Choose the Right MERV Rating for Peak HVAC Efficiency
A solid MERV filter guide starts with the system before it addresses the household. The MERV scale runs from 1 to 20. Residential systems typically run in the MERV 8 to MERV 13 range, and if you’re considering higher-efficiency options, this HVAC filter replacement guide for high‑MERV filters explains when MERV 16 makes sense and how it affects airflow. A MERV rating that exceeds the system’s static pressure tolerance restricts airflow and generates the same operational strain as a saturated filter.
Start with current household conditions:
- Standard dust and pollen, no pets, no allergy sensitivity: MERV 8. Low airflow restriction. Most residential systems handle this without static pressure concerns.
- Pets, allergy sensitivity, or mold exposure: MERV 11. It targets pet dander, mold spores, and fine particulate matter. Check the system manual or ask an HVAC technician whether the system fan supports MERV 11 before switching from MERV 8.
- PM2.5 events, wildfire smoke, or elevated outdoor air quality: MERV 13. It delivers 50% minimum removal efficiency for the smallest tested particle sizes, and dedicated MERV 13 air filters resources can help you compare options and verify compatibility with your system. Saturation happens faster when outdoor particle counts run high. Confirm system compatibility before installing.
One finding our team documents consistently: a loaded filter at any MERV rating protects less than a clean filter at a lower rating. The number on the label reflects performance potential under clean conditions. Actual protection at any given moment depends on what the filter is carrying.
When Conditions Tell You to Replace the Filter: Air Filter Change Frequency Explained

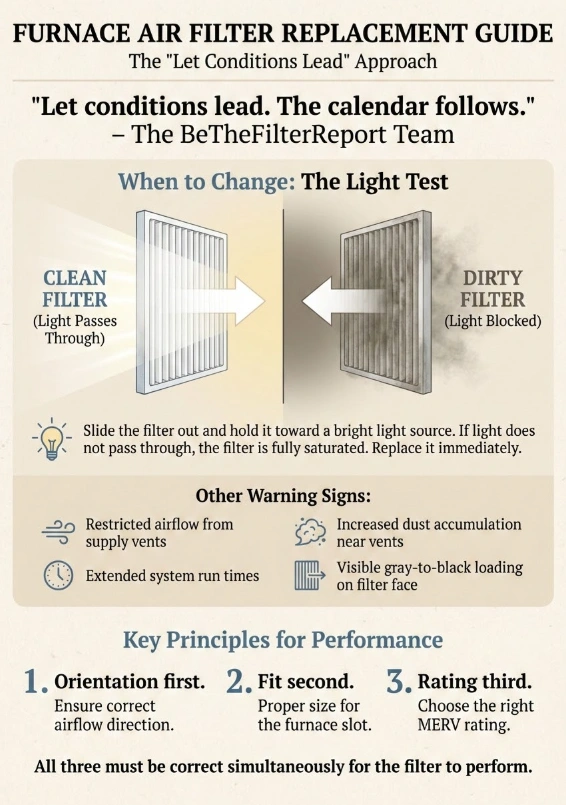

The field test is direct. Slide the filter out and hold it toward a light source. If light does not pass through the media, the filter has reached loading capacity. Replace it regardless of when it was installed.
Additional conditions that signal a change is needed:
- Restricted airflow from supply vents. If rooms that normally reach target temperature quickly are taking longer, check the filter before investigating any other cause.
- Extended system run time. A system running noticeably longer to reach the same thermostat setting often signals airflow restriction at the filter.
- Increased dust accumulation near supply vents. A filter approaching capacity lets more fine particles circulate through the duct system and settle on nearby surfaces.
- Visible gray-to-black loading on the filter face. Heavy surface loading is a direct condition signal, independent of the light test, and in some cases dangerous black furnace filters linked to mold or carbon monoxide issues require more than a simple swap.
The air filter change frequency printed on the packaging is a manufacturer baseline for a median home with average conditions. It does not account for a high-shedding dog, active renovation dust, a wildfire smoke event, or occupants managing respiratory conditions. These HVAC filter replacement tips apply regardless of filter type or MERV rating: conditions set the replacement schedule. The calendar is a starting point at best.
Home Air Filter Sizes: How to Read and Confirm Yours
Every disposable filter has three dimensions printed on the cardboard frame: length, width, and depth in inches. A 20x25x1 filter is 20 inches long, 25 inches wide, and 1 inch deep, and size‑specific pages for 18x24x1 air filters make it easy to match your nominal size when you already know your slot dimensions. That is the nominal size.
Nominal differs from actual. The nominal measurement is the rounded label used for standardized sizing. Actual dimensions run slightly smaller. A nominal 20x25x1 typically measures 19.75×24.75×0.75. Both numbers usually appear on the same frame.
If the old filter is gone, measure the slot directly. Take the length and width of the opening and the depth of the slot. Match those measurements to the nearest nominal size, then use a general house air filters sizing resource to confirm you’re ordering the correct style and depth.
For any air filter for home HVAC system requiring custom dimensions, confirm the actual slot measurement before ordering. A filter cut too large will not seat correctly. One cut too small leaves a gap that routes unfiltered air around the media. Custom sizes are available from specialty suppliers for non-standard slot dimensions.
“The most consistent finding in our field evaluations is a filter installed backward on day one, running against the airflow for months before anyone traces the performance loss to its source. Orientation errors generate more documented blower motor wear in our data set than any other single installation variable.”
7 Essential Resources for How to Change Air Filter in Home
These are the primary sources our team consults for furnace filter replacement guidance, MERV rating methodology, and indoor air quality standards.
1. EPA Guide to Air Cleaners in the Home
The primary federal reference for HVAC filter selection, MERV rating methodology, and health-based PM2.5 filtration thresholds. The EPA defines MERV 13 as the recommended minimum for effective PM2.5 capture in residential systems and provides guidance on confirming whether a system can support higher-rated filters without airflow compromise.
2. ENERGY STAR: Heat and Cool Efficiently
Federal energy efficiency guidance covering HVAC filter maintenance, the efficiency penalty of restricted airflow, and the financial impact of dirty or clogged filters on monthly utility costs. ENERGY STAR recommends monthly filter inspection and confirms the direct connection between filter condition and peak HVAC efficiency.
3. NIOSH Indoor Environmental Quality Program
National Institute for Occupational Safety and Health guidance on indoor environmental contaminants, ventilation standards, and the role of HVAC filtration in managing residential air quality. Covers the contaminant types residential filters are designed to capture and the health basis for filtration upgrades.
4. DOE Energy Saver: Maintaining Your Air Conditioner
Department of Energy resource on HVAC system maintenance, including filter replacement as the highest-impact routine maintenance variable for system efficiency and operational longevity. Covers the direct energy cost connection between filter condition and system run time.
5. ASHRAE Standards and Guidelines
The source authority for MERV rating methodology. ASHRAE Standard 52.2 defines the testing protocol used to assign MERV ratings across all residential and commercial air filters. Every MERV rating printed on every filter package in the U.S. market originates from this standard.
6. HUD Healthy Homes Program
Federal housing authority resource connecting residential indoor air quality, HVAC maintenance, and homeowner health outcomes. Covers ventilation, filtration, and moisture control as primary healthy home maintenance variables with specific guidance for residential environments.
7. American Lung Association: Clean Air at Home
The leading non-governmental health authority resource on indoor air quality for residential environments. Covers how HVAC filtration directly affects respiratory health outcomes for allergy-sensitive and asthma-sensitive households, with guidance on filter selection by health condition and seasonal air quality event.
3 Statistics That Define the Furnace Filter Replacement Picture
1. Heating and Cooling Account for the Largest Share of Home Energy Use
Space heating and air conditioning together represent the single largest energy consumption category in American homes, according to U.S. Energy Information Administration data. Our team references this when advising homeowners on the real cost of a dirty or mis-installed filter. A restricted filter forces extended run time on the equipment that already draws more energy than anything else in the home. The financial case for conditions-based furnace air filter replacement is not abstract. It shows up on the utility bill.
2. MERV 13 Filters Must Achieve a 50% Minimum Removal Efficiency for the Smallest Tested Particles
EPA testing methodology requires MERV 13 and above filters to demonstrate a minimum 50% removal efficiency for particles in the 0.3 to 1.0 micron range. That size range covers PM2.5, smoke, and bacteria-sized contaminants. Our team uses this threshold when advising homeowners on filter upgrades during elevated air quality events. A MERV 13 at loading capacity does not meet this standard. Conditions-based replacement is the only way to maintain that efficiency under real operating conditions.
3. Indoor Air Frequently Carries Higher Pollutant Concentrations Than Outdoor Air
EPA environmental research documents that indoor air often registers higher concentrations of certain pollutants than the outdoor air surrounding the same building. This holds across a range of geographic locations and outdoor air quality conditions. An indoor air quality filter that is loaded or improperly installed does not just underperform. It removes the primary barrier between occupants and circulating contaminants while the system keeps running. The problem builds silently.
Final Thoughts and Our Take
Three years of field evaluations have produced one consistent observation: the homes carrying the most preventable HVAC strain are not the ones with neglected filters. They are the ones with filters installed backward on day one, running against the airflow for months while the homeowner assumes the system is covered because a filter is present.
Orientation first. Fit second. Rating third. All three have to be correct simultaneously for the filter to perform at the level the MERV rating promises, and keeping a few spare HVAC air filters on hand helps you swap them as soon as conditions call for a change instead of waiting on a delivery. A correctly oriented, correctly fitted MERV 8 delivers more real-world protection than a backward MERV 13 with a frame gap.
The conditions-based approach our team uses does not require tools, subscriptions, or a scheduled reminder. Hold the used filter toward a light source when you have reason to check it, and keep a box of dust defense replacement filters in the sizes your system uses so you can swap them the moment the media stops passing light. Light passes through? Remaining capacity. Light does not pass through? Replacement confirmed. That takes under 10 seconds and is more accurate than any calendar estimate on any filter packaging.
Let conditions lead. The calendar follows.
We test, we measure, and we report.
Frequently Asked Questions About Furnace Air Filter Replacement
How often should I change my furnace filter?
Replace based on what the filter shows you, not a fixed date. Hold it toward a light source. If you cannot see light through the media, conditions confirm replacement. A home with multiple high-shedding pets, active renovation dust, or wildfire smoke infiltration can saturate a MERV 8 in three to four weeks. A low-occupancy home with clean outdoor air and no pets may run the same filter well past the package guidance. The filter tells you. The package gives a median estimate.
What happens if I install a furnace filter backward?
Backward installation pushes air against the wrong face of the filter media. Resistance climbs without any gain in filtration efficiency. The blower motor works harder and runs longer to move the same air volume. Energy costs rise and blower motor wear accelerates. Our testing team has documented this pattern in field evaluations where backward installation was the only identifiable maintenance variable responsible for the system strain measured.
What MERV rating do I need for a home with pets?
MERV 11 is the correct starting point for pet households. It captures pet dander, mold spores, and fine particulate matter that a MERV 8 passes through. Move to MERV 13 during active wildfire smoke or elevated outdoor PM2.5 events. Confirm your system fan supports MERV 13 static pressure before making that upgrade. Under normal conditions, MERV 11 gives the right balance of particle capture and airflow for most pet-owner households.
How do I know what size filter my furnace needs?
The size is on the cardboard frame of the filter already in the slot, listed as length by width by depth. If the old filter is gone, measure the slot opening directly: length, width, and depth. Match those measurements to the nearest nominal size. Nominal dimensions run slightly larger than actual filter dimensions, so that allowance is already built in. Once you know your size, you can pick up pleated air filters in standard 20x20x1 and similar dimensions from major retailers.
Is a higher MERV rating always better for my HVAC system?
No. A MERV rating that exceeds the system’s static pressure tolerance restricts airflow and generates the same operational strain as a fully loaded filter. Most residential systems handle MERV 8 without concern. Many handle MERV 11. MERV 13 needs specific confirmation that the system fan can manage the added resistance. An undersized blower running a MERV 13 it cannot support is not delivering better filtration. It is accelerating wear on the most expensive component in the system.
Can I run my HVAC system without a filter in place?
No. Running without a filter lets unfiltered air reach the blower motor, heat exchanger, and evaporator coil directly. Dust and debris accumulate on those components and reduce system efficiency over time. A dirty filter at reduced capacity is better than no filter. A correctly installed, correctly rated filter at appropriate loading capacity is the standard our team recommends for peak HVAC efficiency and indoor air quality protection, and affordable MERV 8 furnace filters in multi‑packs make it easier to keep a spare on hand.
What is the difference between MERV 8, MERV 11, and MERV 13?
MERV 8 captures larger particles including standard household dust, pollen, and dust mites. Right for homes with no pets and no allergy sensitivity. MERV 11 captures everything a MERV 8 catches plus finer particles including pet dander, mold spores, and fine particulate matter. MERV 13 adds smoke particles, bacteria-sized contaminants, and PM2.5 to that list. Each rating step also increases the static pressure the filter places on the system. Confirm system compatibility before upgrading.
